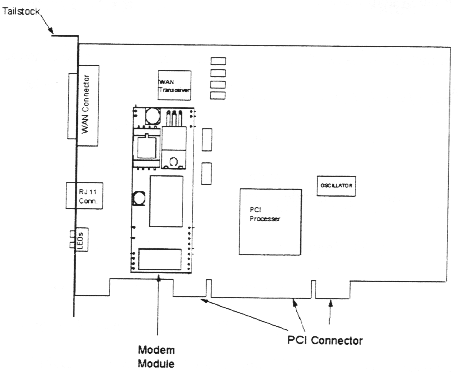

- The 2793 iSeries PCI 2-Line WAN w/ Modem IOA is an adapter which contains
a WAN port capable of running Synchronous and Asynchronous Data on
V.24/V.28,V.35, V.36, and X.21 (leased) interfaces with the capability to
support X.25 networks. It also contains a V.92 modem for iSeries systems
which can run ASYNC communications, ASYNC PPP communications at speeds up to
56Kpbs, and class II fax at speeds up to 33.6Kbps
[back to top]
- AT - Attention Code
The attention code preceedes all command lines except A/, A:, and escape
sequences
- ENTER key
Press the ENTER (RETURN) key to execute most commands
- Answer
Answer call before final ring
- Repeat Last Command
Repeat the last command string. Do not precede this command with AT.
Do not press ENTER to execute.
- Communication Standard Setting
n = 0 3, 15, 16
B0 - Select ITU-T V.22 mode when modem is at 1200bps
B1 - select Bell 212A when modem is at 1200 bps
B2 - Deselect v.23 reverse channel
B3 - Deselect v.23 reverse channel
B15 - Select v.21 when the modem is at 300bps
B16 - Select Bell 103J when the modem is at 300bps
- Dial
s = dial string (phone number and modifiers)
Dial telephone number s, where s may be up to 40 characters long and include
the 0 9, *, #, A, B, C, and D characters, and the L, P, T, V, W, S, comma(,),
semicolon(;), !, @, ^, and $ dial string modifiers.
Dial string modifiers
L Redial last number (Must be placed immediately after ATD.)
P Pulse-dial
T Tone-dial
V Switch to speakerphone mode and dial the following number. Use ATH
command to hang up.
W Wait for a new dial tone before continuing to dial (X2, X4, X5, X6 or X7
must be selected.)
, Pause during dialing for time set in register S8
; Return to command mode after dialing
! Hook flash. Causes the modem to go on-hook for one-half second, then
off-hook again.
@ Wait for quiet answer. Causes modem to wait for a ringback, then 5
seconds of silence, before processing the next part of command. If
silence is not detected the modem returns a NO ANSWER code.
^ Disable data calling tone transmission.
$ Detect AT&T call card bong tone. Exp. ATDT15555551212$123456789
- DS=y (Dial Stored Phone Number)
n = 0-2
Dial a previously stored number by the &Zy=x command (Example: ATDS=2)
- En
- Fn
- Hn
- In
- Mn
- Nn
- On
- P
- Qn
- Sr=n
- Sr?
- T
- Vn
- Wn
- Xn
- Zn
- &Cn
- &Dn
- &En
- &Fn
- &Gn
- &Kn
- &Ln
- &Pn
- &Qn
- &Sn
- &Tn
- &V
- &Wn
- &Zy=x
- \An
- \Bn
- \Kn
- \Nn
- \Qn
- \Tn
- \Vn
- \Xn
- -Cn
- %An
- %B
- &Cn
- %DCn
- %En
- %Hn
- %Rn
- %Sn
- $Dn
- $EBn
- $MBn
- SRPn
- $SBn
- +VDR=x,y
- #CBAn
- #CBDn
- #CBF?
- #CBFR
- #CBIn
- #CBNy=x
- #CBPn
- #CBRy
- #CBSn
- #Pn
- #Sx
- #X=x
- +++AT<CR>
- %%%AT<CR>
[back to top]

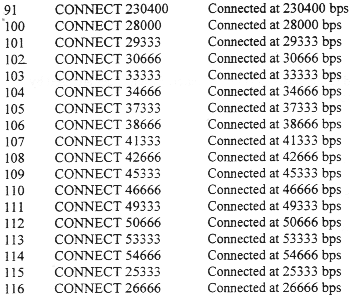

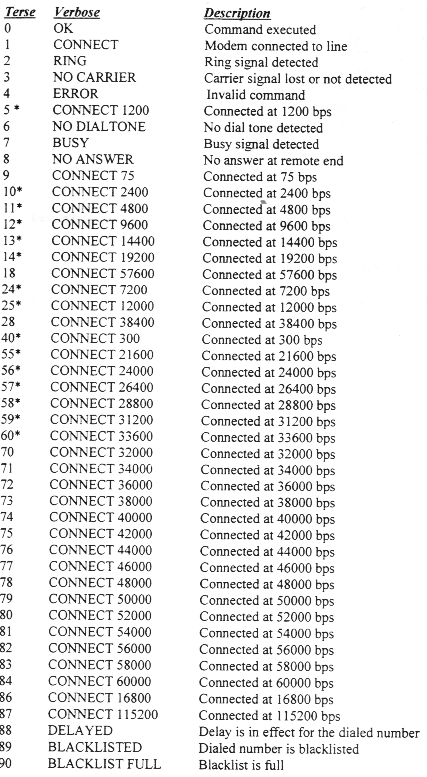

- In command mode your modem can send responses called result codes to your
computer.
