3 Com 16-Port Hub

  • 3COM - OFFICE CONNECT DUAL SPEED ETHERNET
  • 16portS 10/100MBPS NETWORKING HUB 16 (3C16754US)
  • 3com 3c1675

Product Specifications

  • Ports per hub: 16 10/100 Mbps Ethernet
  • Media interface: 16 10BASE-T/100BASE-TX; RJ-45 connectors
  • System LEDs: Bandwidth, Collision, Power
  • Port LEDs: Network speed (10 or 100 Mbps)
  • Operating systems supported: Novell NetWare, Windows 2000/9x
  • Hub type: FCC Class B; approved for use in home office environments
  • Power requirements: 8 VA
  • Height: 6.1 cm (2.4 in)
  • Width: 22.8 cm (9.1 in)
  • Depth: 18.5 cm (7.3 in)

    • Package Contents

  • Hub
  • 11-watt power adapter
  • Rubber feet
  • One-piece stacking system
  • User’s guide

    • [back to top]

    [back to top]

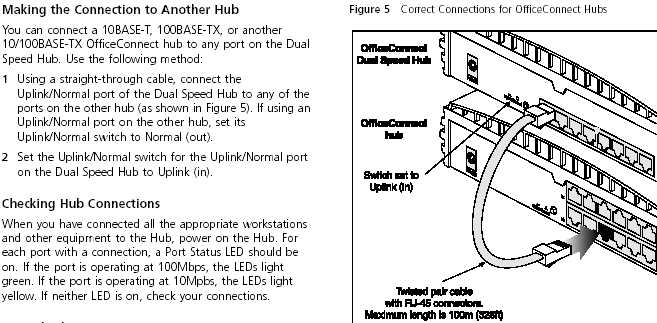

    Hub to Hub Connections
