IBM iSeries (AS400) 9406-520/525

Diagrams

Rear Views

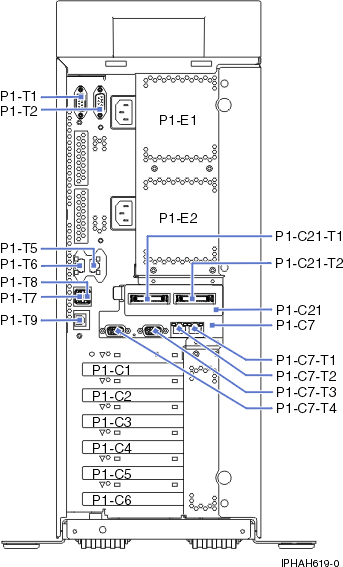

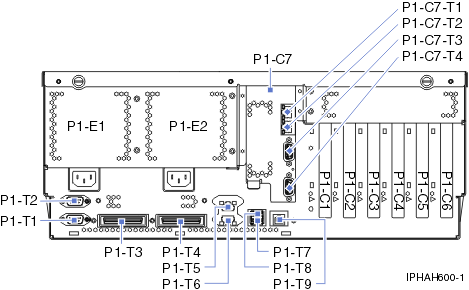

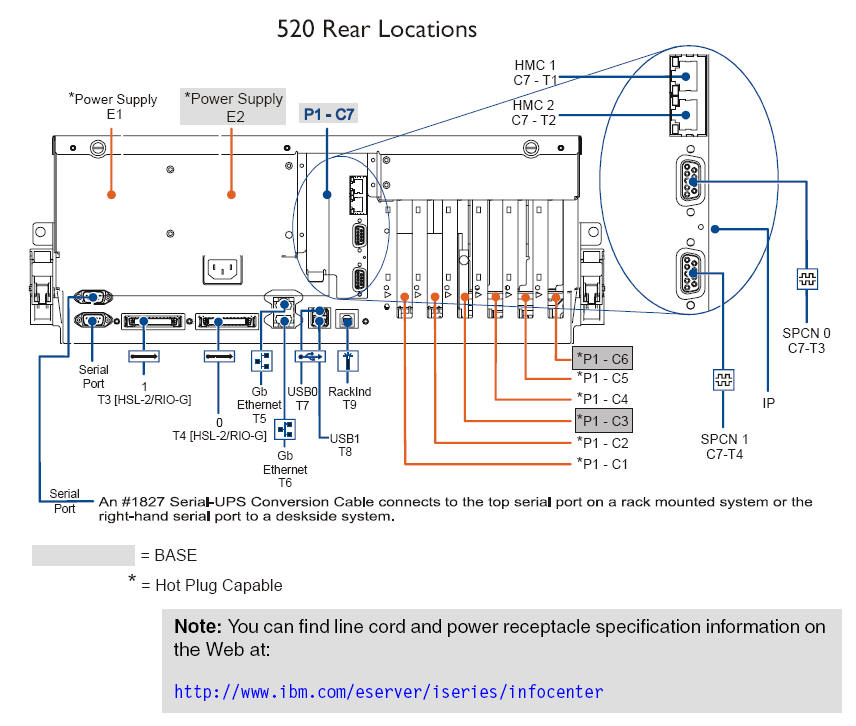

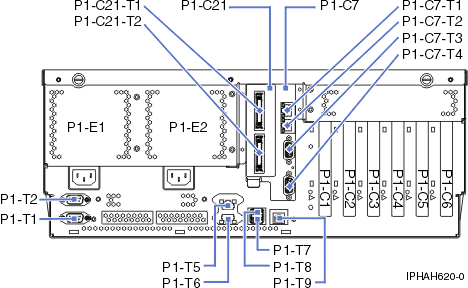

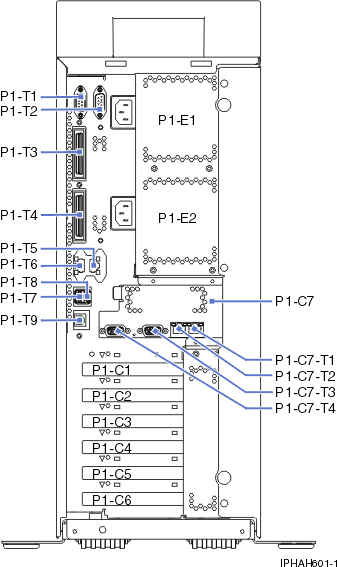

Back views of a model 9405-520, 9406-520, 9406-525, or 9407-515 View the ports and connections on the model 9405-520, 9406-520, 9406-525, or 9407-515. Connections and ports are labeled to facilitate the setup process. Figure 1. Back views of a model 9405-520, 9406-520, 9406-525, or 9407-515 with the integrated HSL/RIO ports (T3/T4) [back to top] Figure 2. Back views of a model 9405-520, 9406-520, 9406-525, or 9407-515 without the integrated HSL ports (T3/T4) Parent topic: References [back to top] [back to top]
