IBM 8245 Autosensing 10/100 Hub
Models
- Models 024, 112, 124 & 145
Description
- The New IBM 8245 10/100 Ethernet Hub is a dual speed (10Base-T and
100Base-TX), dual back plane stackable hub.
- There are four models available.
The new IBM 8245-112 and the new
IBM 8245-124 are managed hubs that can manage the new IBM 8245-012 and the
new
IBM 8245-024 in a stacked Ethernet configuration. A maximum of six hubs can
be in one stack providing up to 144 ports in the stack.
- The IBM 8245 model 012 and the IBM 8245 model 024 are manageable hubs
which can be used with managed hubs or by themselves in a stack of up to
six.
- The IBM 8245 model 112 and the IBM 8245 model 124 are both managed hubs
that provide management to a stack of hubs. Managed hubs support SNMP, four
groups of RMON and are Web Server accessible.
Specifications
1-Year Warranty (New)
The IBM 8245-124 is a 24-Port RJ45 10/100 Auto Sensing Hub
The 8245-124 is a managed master hub that can manage slaved hubs in a
stacked configuration
A maximum of 6 hubs can be in one stack, providing up to 144 ports
Each port provides polarity reversal jabber sensing, auto-partitioning, and
intrusion security
Auto hub ID assignment
Vacuum fluorescent display
Module socket for optional 10/100 Bridge module (3 port switch)
TFTP and BootP for downloading of IP address, configuration file, and
product microcode
RS232 port for out-of-band management
SNMP, Web, RMON (Group 1, 2, 3, and 9) management
Factory set configuration for operation verification
Node source matching
Packet size distribution monitoring
Network utilization monitoring
100-240V, 50-60Hz

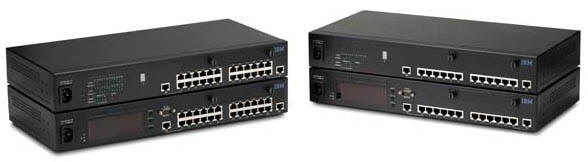

Photos
|
