IBM InfoWindow I Display Overview
- The InfoWindow Models II 3486, 3487, 3488, and 3489 provide a graphical
user interface (GUI)-like capability. They also incorporate a variable split
screen, calculator, expansion cartridge to enable future IBM product
enhancements or unique customer requirements to be added to the display, and
both a mouse port and printer port as standard.
- The InfoWindow IIs have screen front characteristics, which meet the VDT
section of the ISO Standard 9241 Part 3. They also meet the Swedish
requirement of MPR-2 for low emissions, and the US EPA "Energy Star" Program
for energy efficient office technology.
- The 3486 and 3487 are integrated in design with a 122-key or
enhanced
keyboard, a lift, tilt, and swivel stand, and a monitor, with a choice of
green, amber-gold, or color screens. They support up to two host display
sessions, operator selectable horizontal or vertical split screen, and
additional support for additional printers.
- The 3488 and 3489 are modular in design with a 122-key or enhanced
keyboard and Modular Logic Unit, which supports the attachment of most IBM
monitors. They support up to four host display sessions, have a 6,000
keystroke record, play, pause facility, a 262,000 color palette, extended
foreground and background colors and support a lightpen.
- The 3489 supports the Image/Fax-View and print facility and one
PC/TV
attachment, which allows end users to control audio and motion video using a
cable, antenna, or external video source in a sizeable pop-up window. The 348n
displays connect to the iSeries (AS400) using twinaxial attachment.

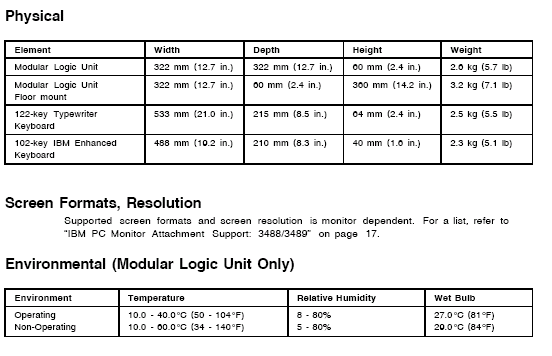

Technical Specifications
348x Manuals

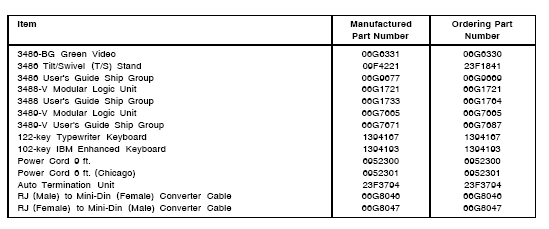

Element Part Numbers
|
