Twinax Connectors
Standard Amphenol Twinax Connector
Parts to 1 Twinax End
Twinax In-line
connector

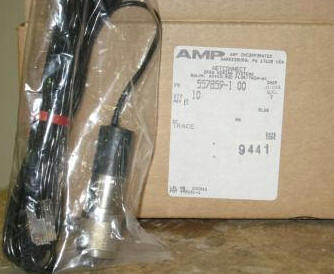

Twinax Netconnect
RJ-11(45) to Twinax (TA-2-81301)
|
Twinax Male |
 Twinax Female |
Twinax Side |
|
It is very important to remember that the only
max cable length of any twinax run
is 5000'.
- To extend beyond that length you must
have a repeater.
|
Description
- Twinax connectors are used with 78
and 95 ohm conductor cables and operates from
0-200 MHz.
- Due to the improved shielding characteristic (>30dB),
these connectors are used in balanced low level and
high sensitivity circuits.
- Meets applicable sections of MIL-C-3655
- Twinax connectors feature keyway polarization to
ensure system integrity and prevent signals from being mixed. Ideal for
computer network applications.
|
Features/Benefits
- Polarized key and keyway construction guarantees
correct dual contact mate.
- Twinax center pins can be crimped or soldered
to provide dual signals from one connector.
- Large threaded connectors designed for rugged
use.
- Crimp contacts ensures lower cost of installation.
- Clamp assembly allows quick assembly without
requiring special tools.
- 2 Stud bayonet design allows quick and easy
coupling.
|
Application
- Cable Assemblies
- Components
- Mil-Aerospace
- Computer Networks/LAN
- Process Equipment
|
ELECTRICAL
- Impedance Used with 78 ohm and
95 ohm twin conductor
cables.
- Frequency range Keyway polarization:
0-200 MHz, 0-500 MHz
with caution.
- Voltage rating Keyway polarization:
500 volts peak.
|
|
 |
MECHANICAL
- Mating Keyway polarization:
3/4-20 threaded
coupling keyed 90°
Cable affixment Braid clamp, "V" groove
gasket and clamp nut
mechanism.
- MATERIAL
Contacts Male: brass
Female: beryllium
copper.
Silver plated or gold plated.
Other metal parts Brass:
Nickel finish
Insulators Copolymer of
styrene, Noryl, or
polyester, as listed.
Clamp gaskets Silicone rubber or
synthetic rubber
|
ENVIRONMENTAL
- Temperature range Copolymer of Styrene:
- 55°C to +85°C
- Noryl:
- 45°C to +121°C
- Weatherproof All Twinax Contact
connectors are weatherproof when mated.
- NOTE: These characteristics are typical
and may not
apply to all connectors.
|
MILITARY SPECIFICATIONS
- Amphenol twinaxial connectors, polarized key
and keyway construction, meet applicable
sections of MIL-C-3655.
|
