US Logic EIDE Model USLHD160I

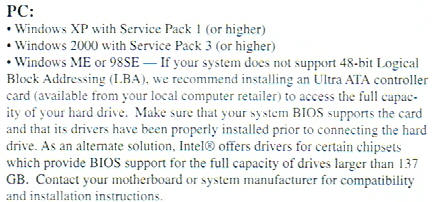

System Requirements

Technical Support

  • 909-348-0698

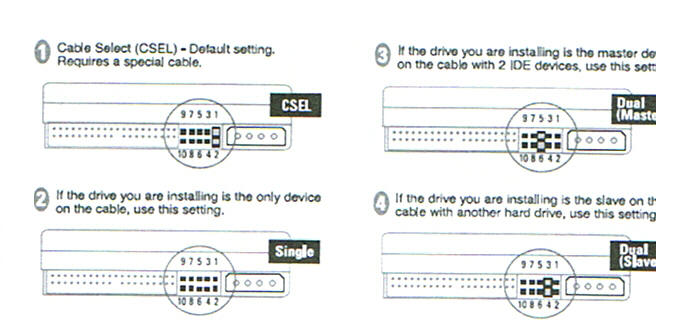

Jumpers

  • Single with no other drive on cable = NO JUMPER
  • Master (primary bootable) = JUMPER 5 and 6
    The other drive on the cable must be configured as a slave.
  • Slave = JUMPER 3 and 4

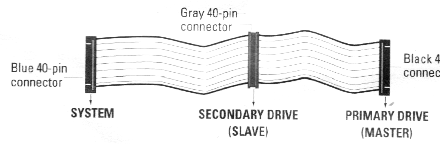

40-Pin Cable Connector
