IU 19, 2 - Level Check Errors

Additional Resources

Error messages

CPF4131

Additional Message Detail

Level check on file INVDTLL1

Invdtl Files

  • Physical files - INVDTL
  • Logical files - INVDTLL1, INVDTLL2

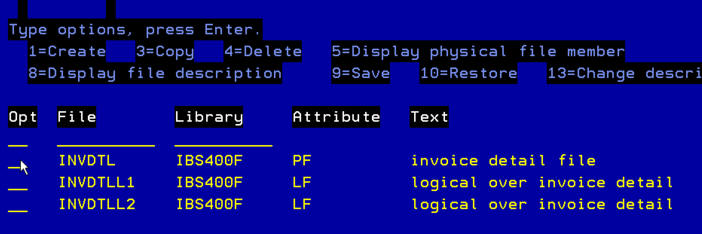

Display Database relations (invdtl)

  • dspdbr invdtl

Recovery

Recreating the logicals

  • crtpf [ibs400f]/invdtl
  • crtlf file(ibs400f/invdtll1) srcfile(qddssrc/ibsv11m0)
  • crtlf file(ibs400f/invdtll2) srcfile(qddssrc/ibsv11m0)

Create Logical File (CRTLF)

Keyword Description Choices Notes
FILE File Qualified object name Required, Positional 1
Qualifier 1: File Name
Qualifier 2: Library Name, *CURLIB
SRCFILE Source file Qualified object name Optional, Positional 2
Qualifier 1: Source file Name, QDDSSRC
Qualifier 2: Library Name, *LIBL, *CURLIB
SRCMBR Source member Name, *FILE Optional, Positional 3
GENLVL Generation severity level 0-30, 20 Optional
FLAG Flagging severity level 0-30, 0 Optional
FILETYPE File type *DATA, *SRC Optional
MBR Member, if desired Name, *FILE, *NONE Optional
DTAMBRS Physical file data members Single values: *ALL
Other values (up to 32 repetitions): Element list		 Optional
Element 1: Physical file Qualified object name
Qualifier 1: Physical file Name, QDDSSRC
Qualifier 2: Library Name, *CURRENT
Element 2: Members Single values: *NONE
Other values (up to 32 repetitions): Name
TEXT Text 'description' Character value, *SRCMBRTXT, *BLANK Optional
OPTION Source listing options Values (up to 4 repetitions): *SRC, *NOSRC, *SOURCE, *NOSOURCE, *LIST, *NOLIST, *SECLVL, *NOSECLVL, *EVENTF, *NOEVENTF Optional, Positional 4
SYSTEM System *LCL, *RMT, *FILETYPE Optional
MAXMBRS Maximum members Integer, 1, *NOMAX Optional
ACCPTHSIZ Access path size *MAX1TB, *MAX4GB Optional
MAINT Access path maintenance *IMMED, *DLY, *REBLD Optional
RECOVER Access path recovery *NO, *AFTIPL, *IPL Optional
FRCACCPTH Force keyed access path *NO, *YES Optional
UNIT Preferred storage unit 1-255, *ANY Optional
FMTSLR Rcd format selector program Single values: *NONE
Other values: Qualified object name		 Optional
Qualifier 1: Rcd format selector program Name, QDDSSRC
Qualifier 2: Library Name, *LIBL, *CURLIB
FRCRATIO Records to force a write Integer, *NONE Optional
WAITFILE Maximum file wait time Integer, 30, *IMMED, *CLS Optional
WAITRCD Maximum record wait time Integer, 60, *IMMED, *NOMAX Optional
SHARE Share open data path *NO, *YES Optional
SRTSEQ Sort sequence Single values: *SRC, *JOB, *LANGIDSHR, *LANGIDUNQ, *HEX
Other values: Qualified object name		 Optional
Qualifier 1: Sort sequence Name
Qualifier 2: Library Name, *LIBL, *CURLIB
LANGID Language ID Character value, *JOB Optional
LVLCHK Record format level check *YES, *NO Optional
AUT Authority Name, *LIBCRTAUT, *ALL, *CHANGE, *EXCLUDE, *USE Optional
